Substation Gantry
Substation Structure

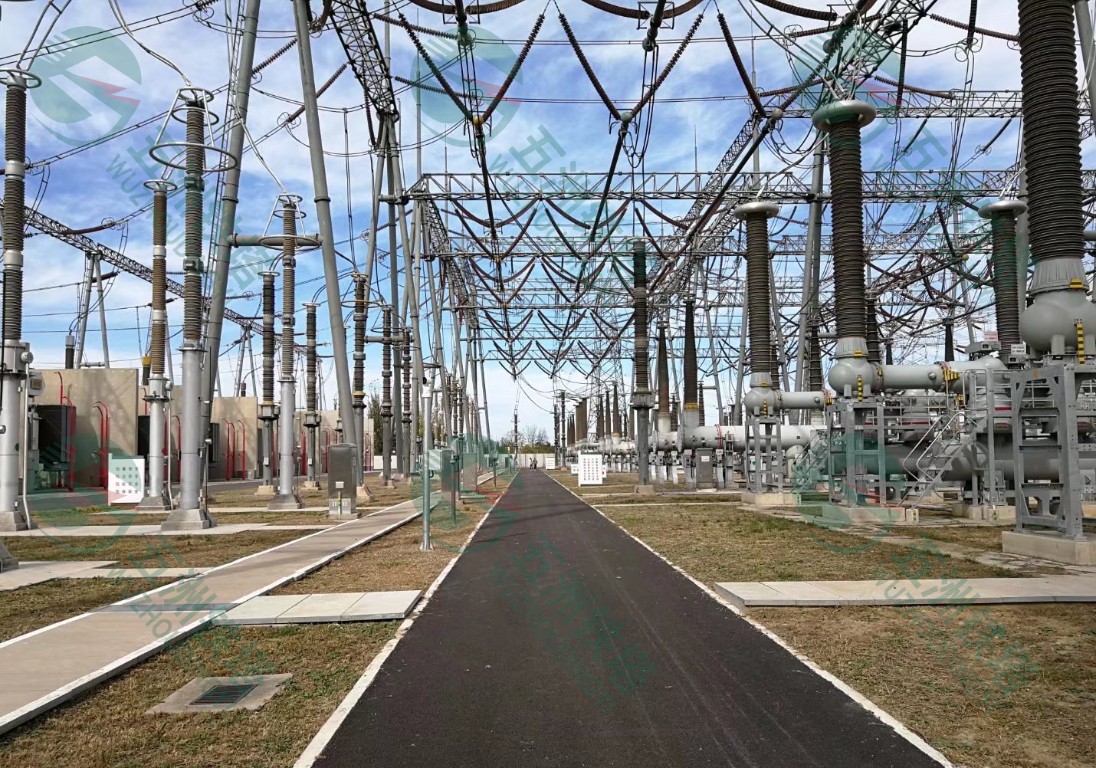

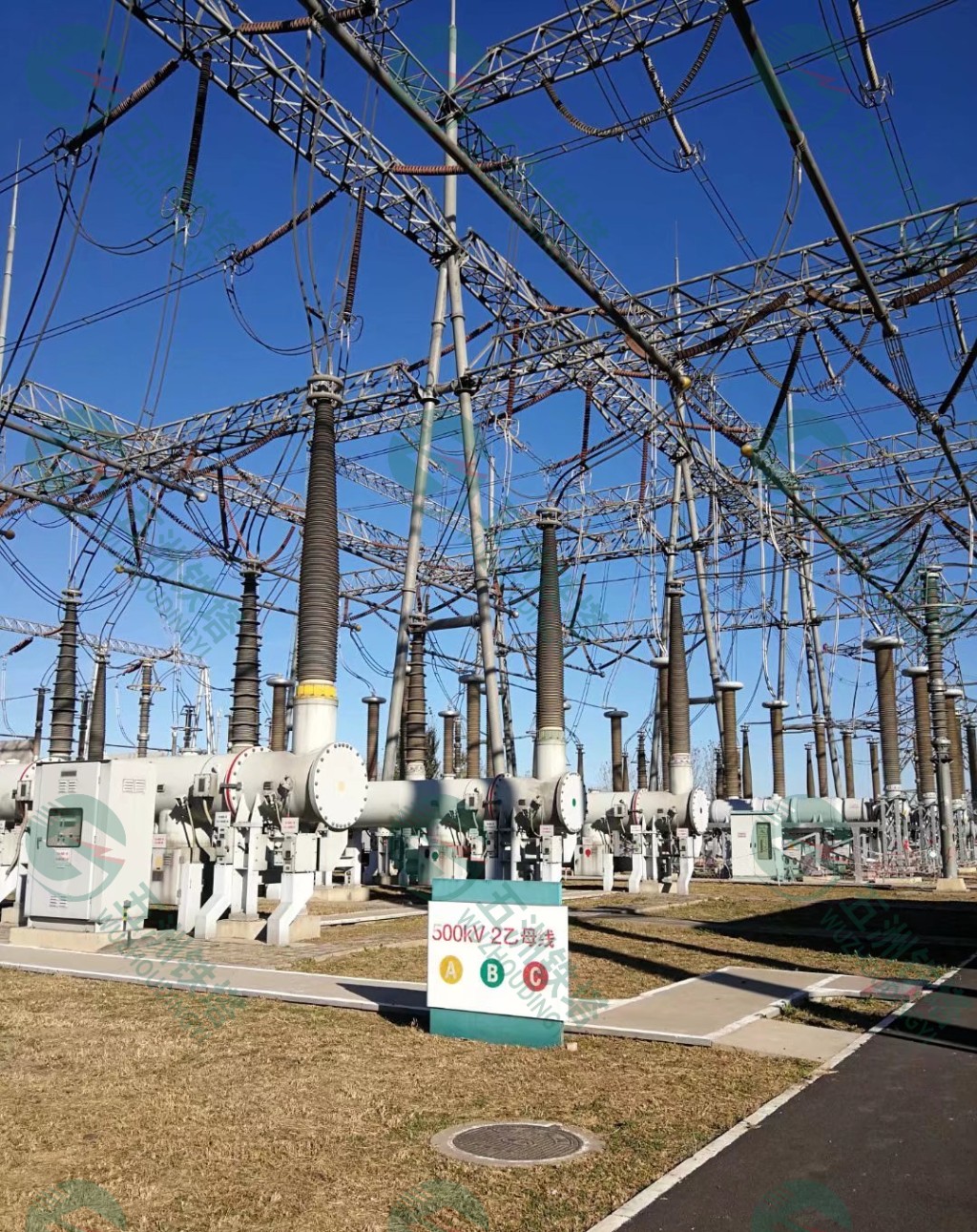

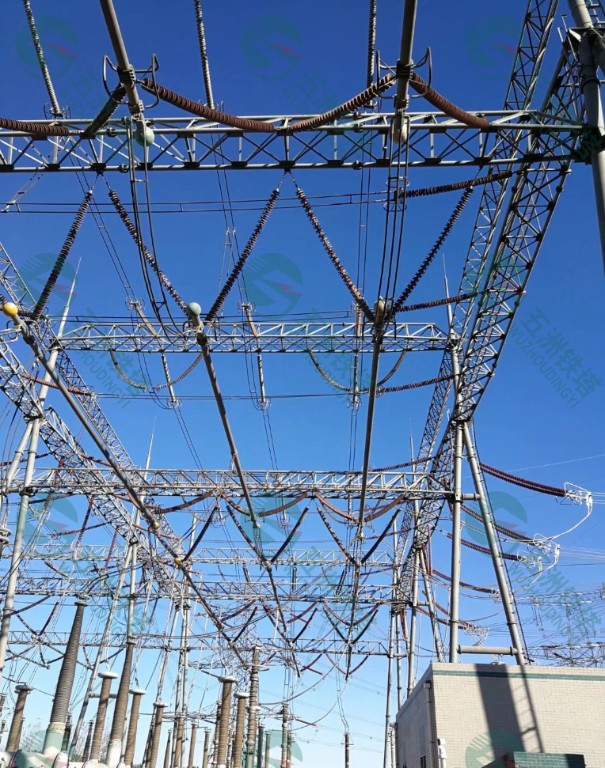

A substation gantry is a structural framework used in electrical substations to support and organize overhead power conductors, electrical equipment, and associated hardware. It plays a critical role in high-voltage power distribution by helping ensure safety, organization, and efficiency in the layout of the substation.
| Product | Substation Gantry |
| Shape | Polygonal or Conical or lattice |
| Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² OR Q420 Q460 ASTM A572 GR65, GR50, SS400 |
| Power Capacity | 10kV to 750kV |
| MOQ | FCL |
| Surface treatment | Hot dip galvanized Following ASTM A 123, BS729 or as client required. |
| connection | Slip joint, flanged connected,or bolt connection |
| Standard | ISO 9001:2008 |
| Length of per section | Within 14 meter when forming |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Thickness | 1 mm to 36mm |
| Production Process | Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper, bundle,wooden box or steel box or according to client’s request. |
