Substation electrical bracket
Substation Structure

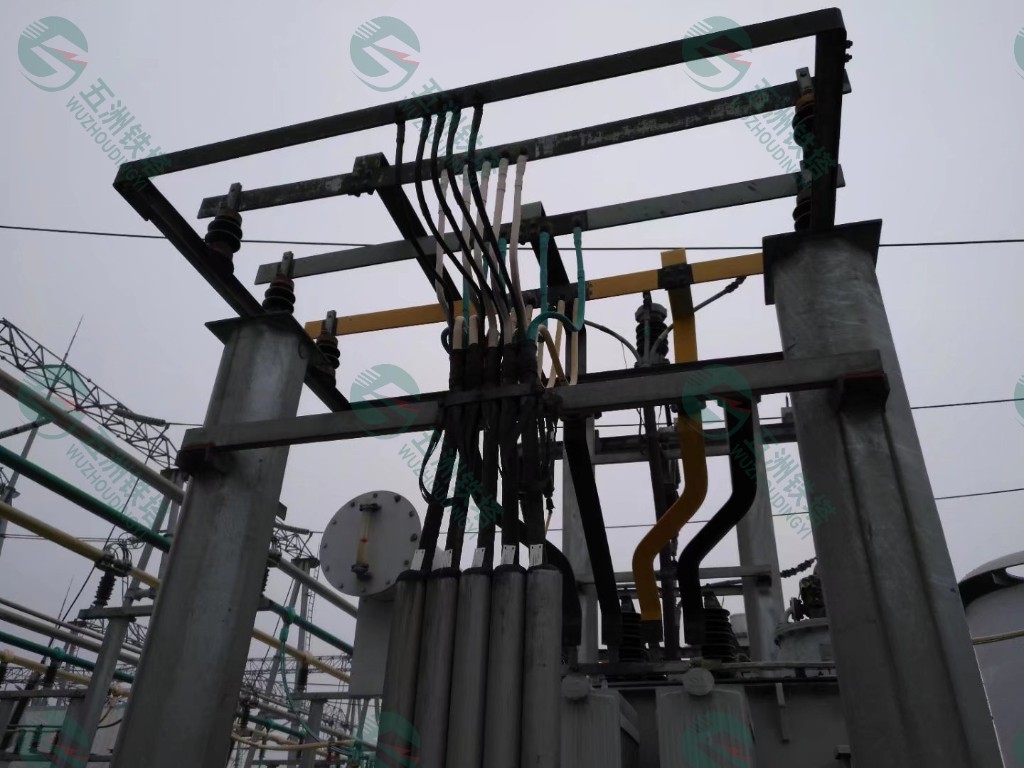

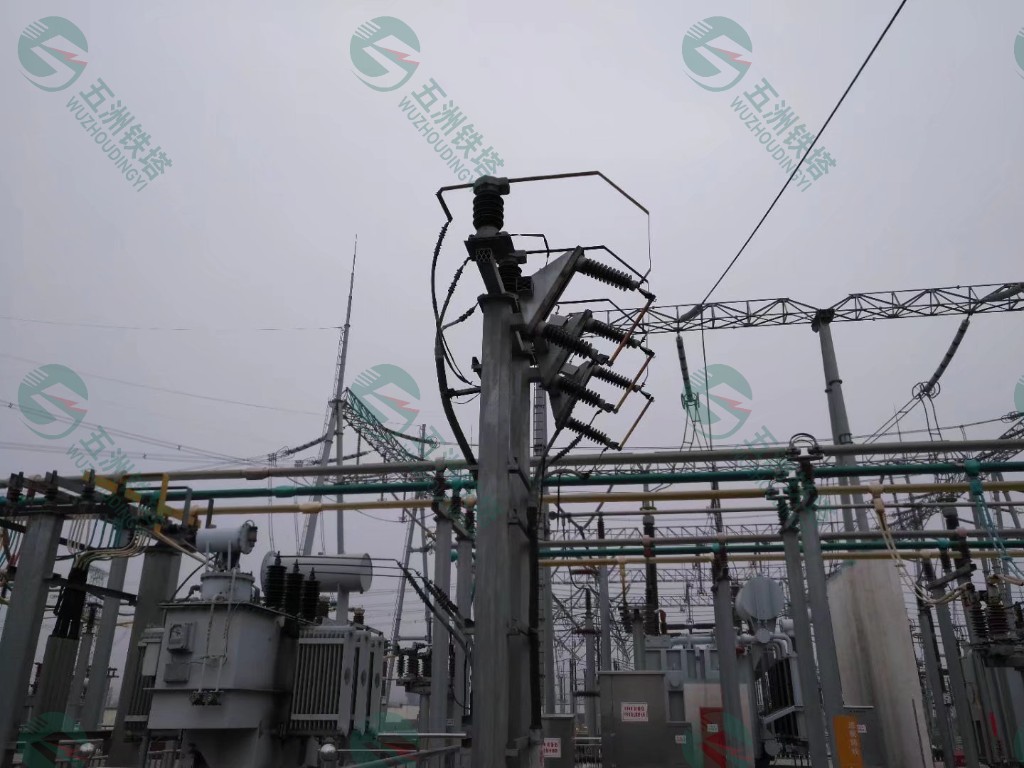

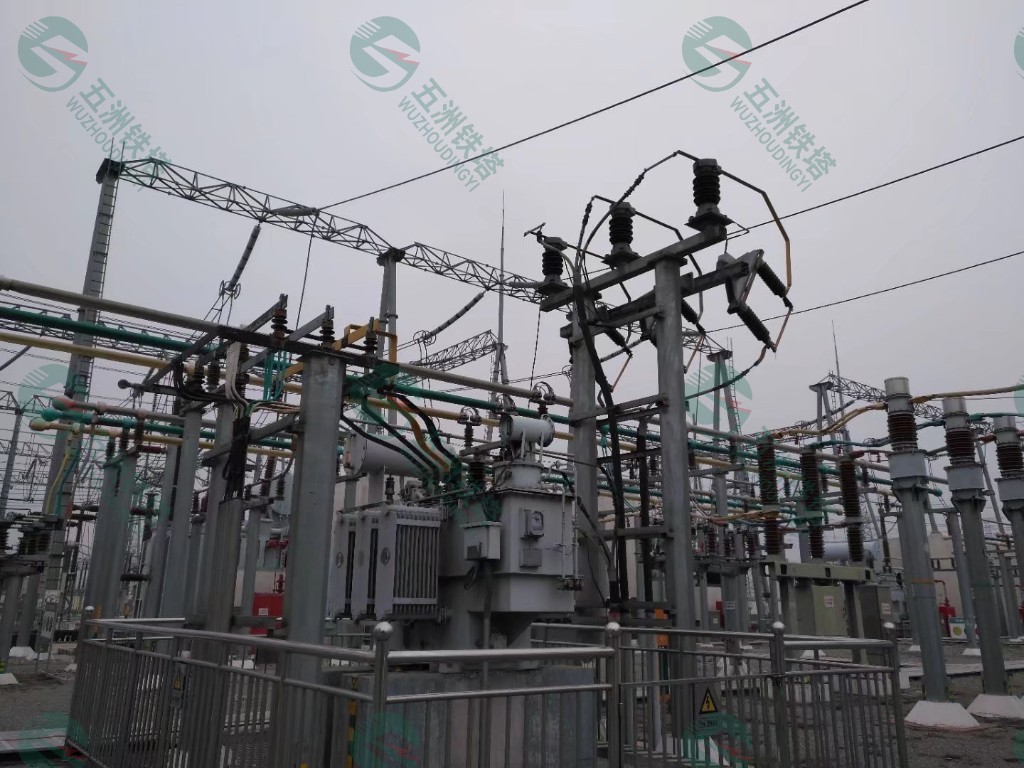

substation electrical bracket is a mechanical support used within electrical substations to mount or hold electrical components in place. While smaller and less prominent than gantries, brackets are essential for ensuring the stability, alignment, and safety of various substation elements.
| Product | Substation electrical bracket |
| Shape | Polygonal or Conical or lattice |
| Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² OR Q420 Q460 ASTM A572 GR65, GR50, SS400 |
| Power Capacity | 10kV to 750kV |
| MOQ | FCL |
| Surface treatment | Hot dip galvanized Following ASTM A 123, BS729 or as client required. |
| connection | Slip joint, flanged connected,or bolt connection |
| Standard | ISO 9001:2008 |
| Length of per section | Within 14 meter when forming |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Thickness | 1 mm to 36mm |
| Production Process | Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper, bundle,wooden box or steel box or according to client’s request. |
