Monopole Transmission Tower

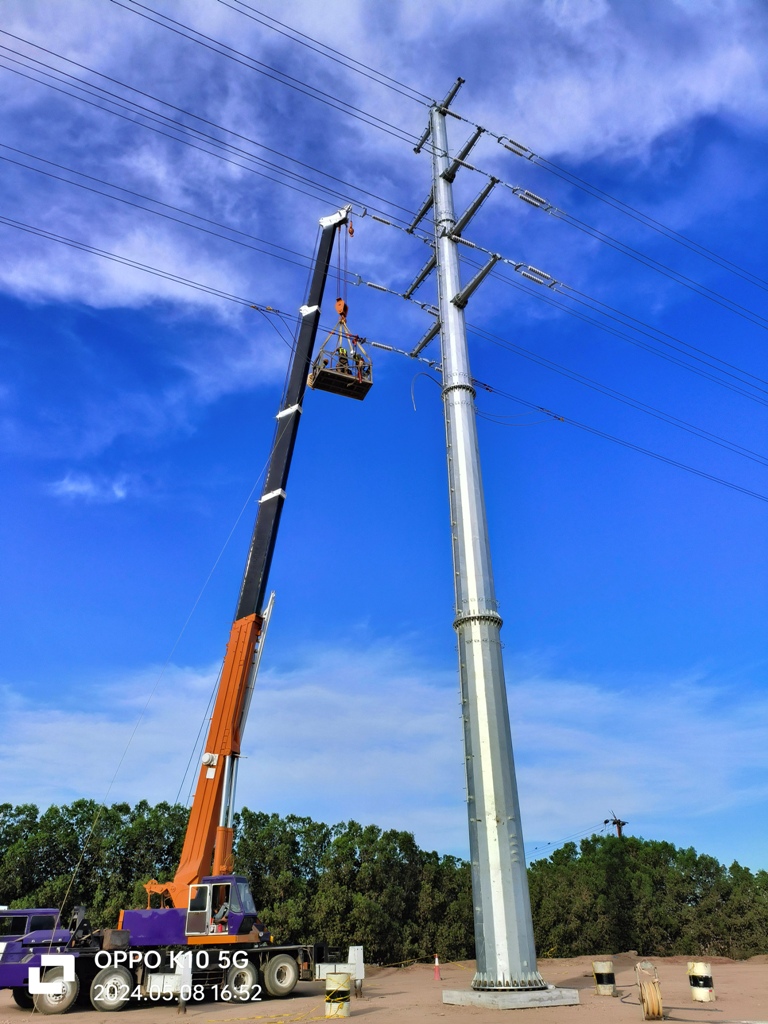

monopole electric tower, often simply referred to as a monopole, is a type of single, tall, and slender column used in the transmission and distribution of electricity. These towers are commonly used to support high-voltage transmission lines and are an alternative to the more traditional lattice towers or wooden utility poles.
| Product | monopole electric tower |
| Shape | Polygonal or Conical |
| Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm². OR Q420 Q460 ASTM A572 GR65, GR50, SS400 |
| Electric Voltage | 4kv, 6kv, 10kV, 11kv, 33kv, 32kv, 35kv, 65kv, 66kv, 110kv, 132kv, 135kv, 220kv, 230kv, 330kv, 380kv etc. |
| Surface treatment | Hot dip galvanized Following ASTM A 123, BS729 or as client required. |
| connection | Slip joint, flanged connected |
| Standard | ISO 9001:2008 |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Production Process | Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper, bundle,wooden box or steel box or according to client’s request. |
